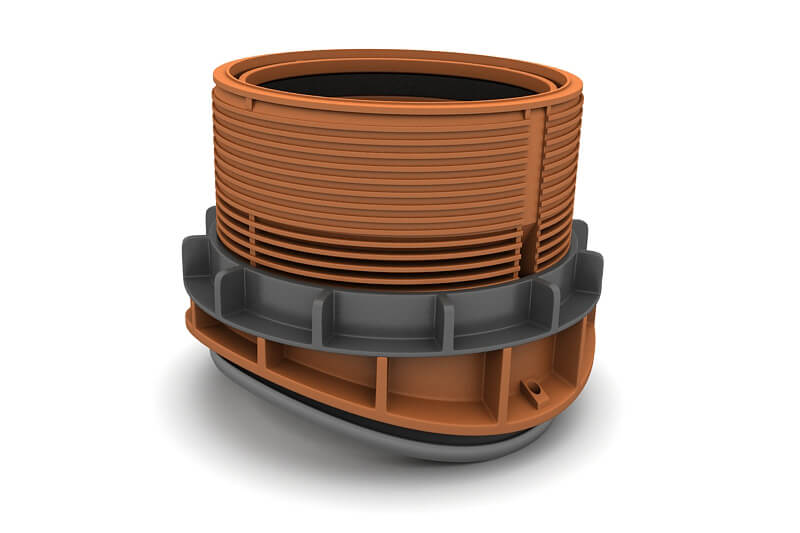

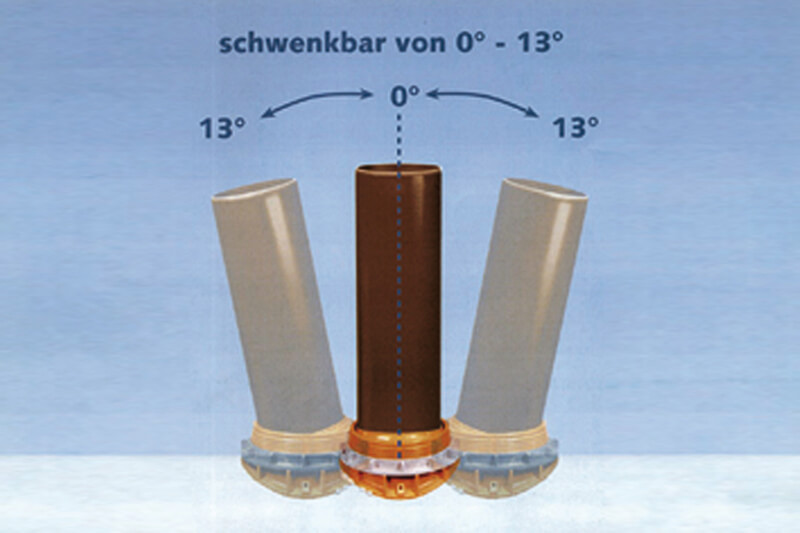

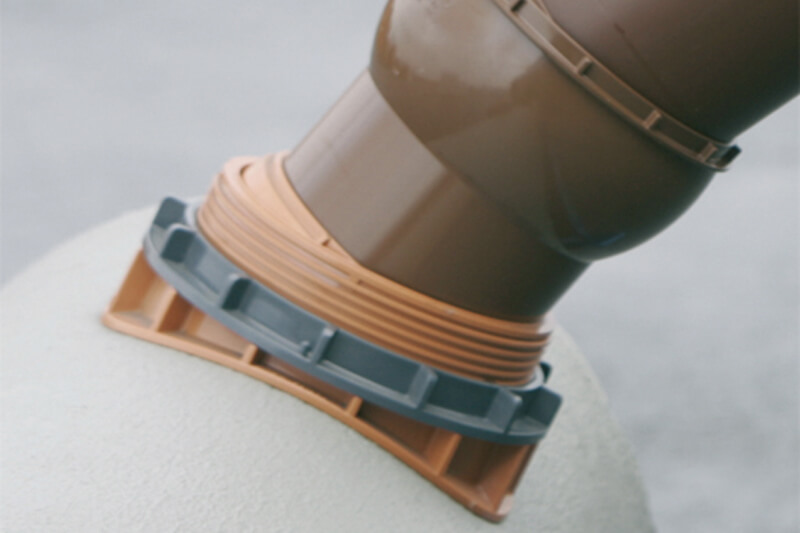

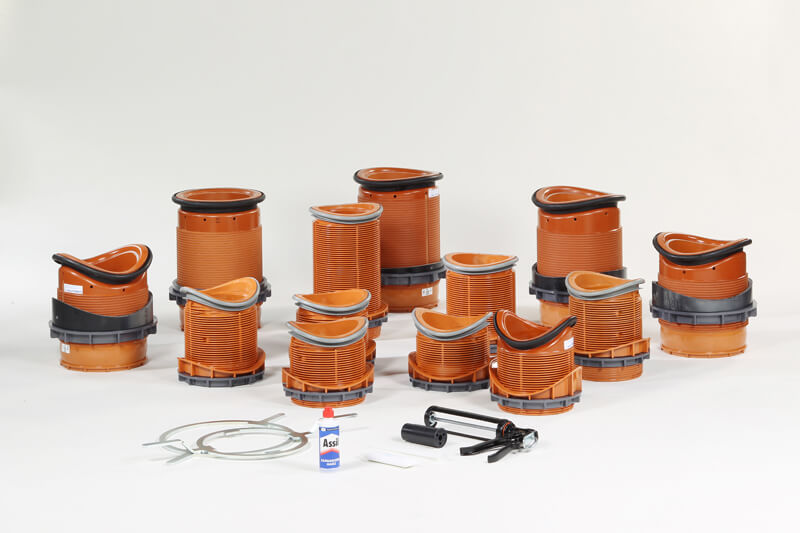

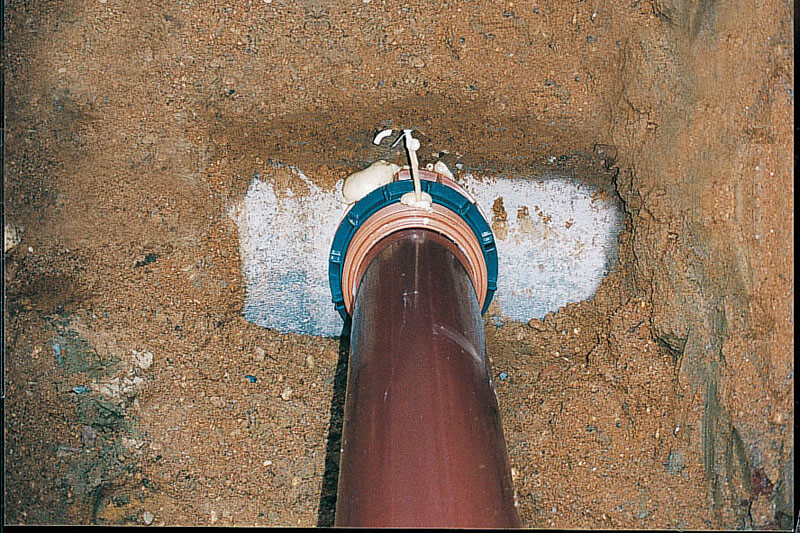

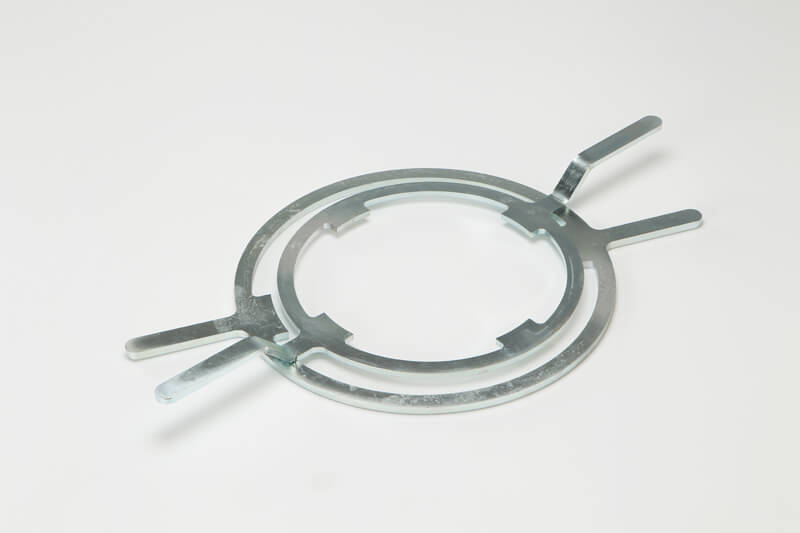

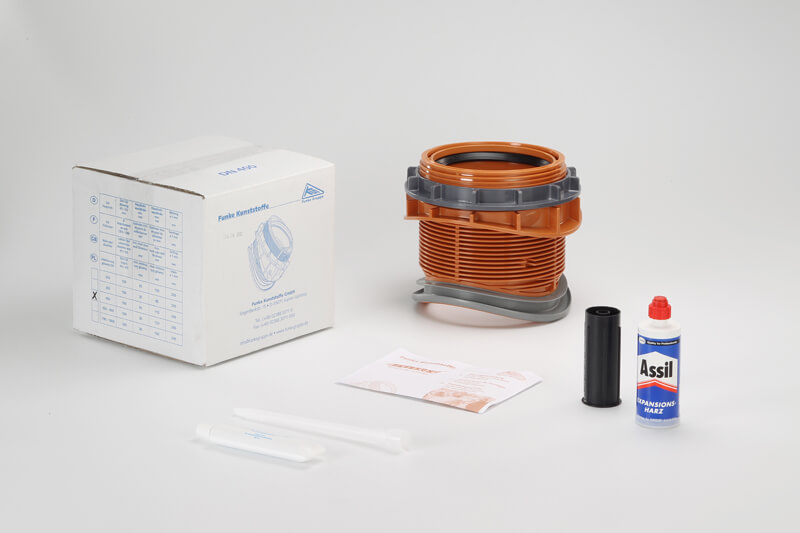

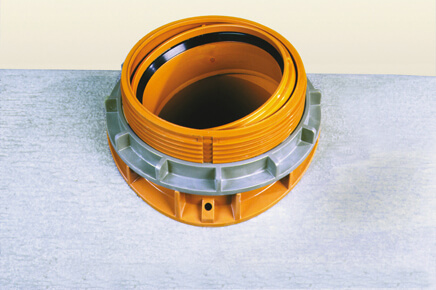

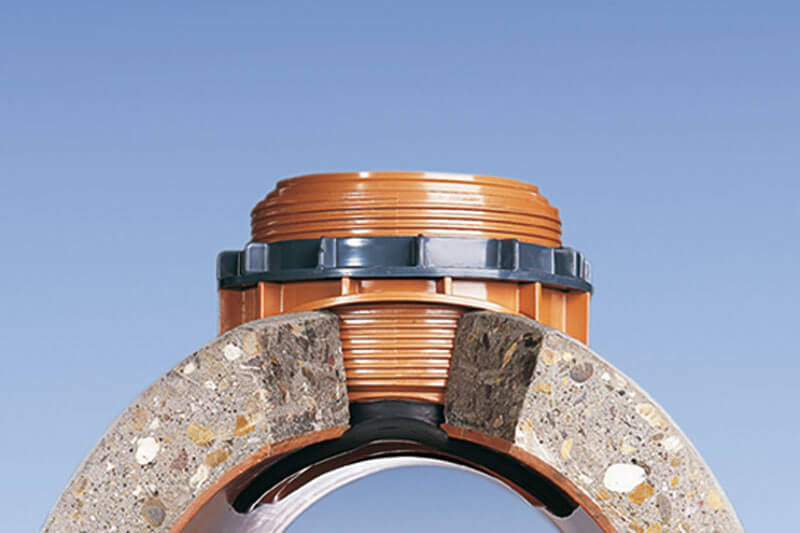

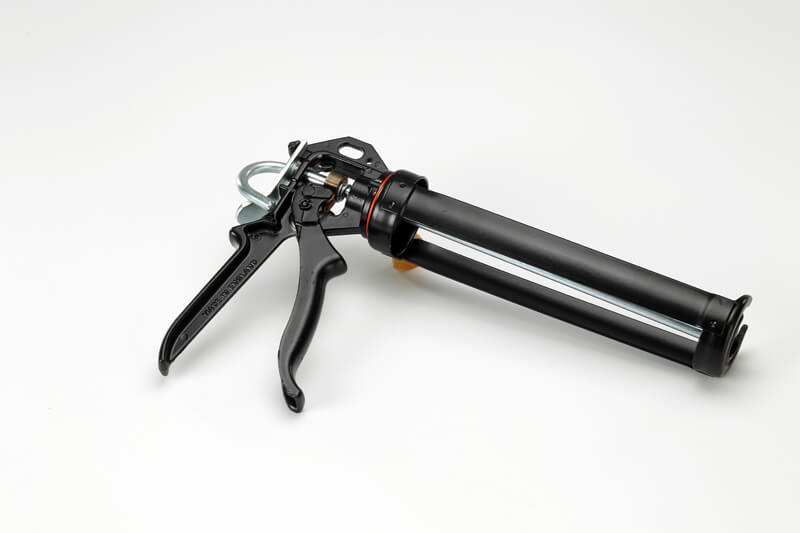

The Fabekun Junction has 2 main and very importance functions and benefits; this type of junction allows 2 pipes to be joined with the possibility of angling the lateral pipe to angle range between 0° and 13° in any direction. More importantly, the Fabekun junction allows pipes junctions to be permanently sealed in a time and cost efficient manner.
Download The Catalog
| Junction Type |
Branch HS/KG DN |
D i Internal Diameter (mm) |
Drilled Hole ±1mm (mm) |
Pipe Wall Thickness min. (mm) |
Pipe Wall Thickness max. (mm) |
|---|---|---|---|---|---|
| 250 | 160 | 160 | 200 | 30 | 105 |
| 300 | 160 | 160 | 200 | 30 | 85 |
| 300 L | 160 | 160 | 200 | 85 | 170 |
| 400 | 160 | 160 | 200 | 30 | 115 |
| 400 L | 160 | 160 | 200 | 115 | 170 |
| 500-600 | 160 | 160 | 200 | 30 | 125 |
| 700-1800 | 160 | 160 | 200 | 30 | 185 |
| 700-1800 L | 160 | 160 | 200 | 185 | 300 |
| 400 | 200 | 200 | 257 | 50 | 100 |
| 500-600 | 200 | 200 | 257 | 50 | 120 |
| 700-1100 | 200 | 200 | 257 | 50 | 200 |
| 1200-2400 | 200 | 200 | 257 | 50 | 230 |
| GW 200 | 200 | 200 | 257 | 50 | 230 |
Information and images on this page are courtesy of Funke Group
